# estimating time with using temperature

In the previous post / blog, we estimated how much radiation the earth gets from the sun, now to exploit that idea to estimate time of the day based on the temperature which is directly affected by the solar radiation among other things.

First, we should note that we are aiming here to calculate time of the day, based on the solar day, which is different than the time of the day based on the local timezone, the later is a discretized approximation of the former, and is based not just by the sun, but also politics, religious activities that shifts the biological day of the population, economic blocks that prefer to be syncronised, etc...

Second, you may notice that we mesure solar radiation throu temperature, which are not the same, the only actual major difference is the temporal shift due to termal inirtial, meaning the earth need some time to catch heat, and similarly to dispose of it, it also may varie depending on the region, other factors like clouds and winds are with the margin of error.

To acomodate for the thermal inirtia and the difference between solar clock and the local timezone, the user should input a correction term which we call 'lag' correspounding to the time on which the temperature is at its maximum, thats the solar noon, a lag of 0 implies that the hotest time of the day is at 12h00.

We fetch some real world weather temperature from a wether API, I use open meteo, here a command to fetch Casablanca's previous day temperature data as a JSON:

curl "https://api.open-meteo.com/v1/forecast?latitude=33.5883&longitude=-7.6114&minutely_15=temperature_2m&timezone=Europe%2FLondon&past_days=1&forecast_days=0"

the data comes as a neet python formated array, so I wouldn't be bothered by using the officiel library, a simple copy paste into a file in sufficient, there should be a command to do that more effiently using piping, but again its a one time thing.

Now a corolation function sweeping over our signal (or record) against the theoritical sample to determine which is the most probable to be the one represented in the sample, the parametres here are such 'r' is the real world data, 't' is the theoritical analysis data.

def correlate(r, t):
    out = []
    for start in range(len(t)):
        out += [sum(r[i] * t[(start + i) % len(t)] for i in range(len(r)))]
    return out

the data should first be normalised.

def norm(x):
    n = len(x)
    mean = sum(x) / n
    var = sum((v - mean) ** 2 for v in x) / n
    std = var ** (1/2)
    return [(v - mean) / std for v in x]

the lag and the latitude are specified by the user to fit local clock, I emulated incremental recording of a sensor as it adds samples as it runs, by choping the real data and mesuring the error and the confedance afterward.

the lag is mesured by taking the diference between local 12h00 and the time when the temperature is at maximum in hours - the difference - and multiplying it by 4 as the open-meteo provides samples mesured every 15 minutes. the standart latatude should be subtracted from 90 as in the code the 90 deg north pole correspond to latetude of 0 deg.

lat = 90 - 34
lag = 17
error = []
confedance = []

for i in range(2, len(rtemp)):
    corr = correlate(norm(rtemp[:i]), norm(ttemp[lat]))
    nowisthetime = max(range(len(corr)), key=lambda k: corr[k])
    last_sample_index = nowisthetime + len(a) - 1
    error += [(last_sample_index-i+lag)%96]
    confedance += [corr[nowisthetime]]

and of course a vibe coded function to nicely print tamestamps as a clock:

def time_str(n):
    h, m = divmod(15*n, 60)
    return f"{h%24:02d}:{m:02d}"

here are the results:

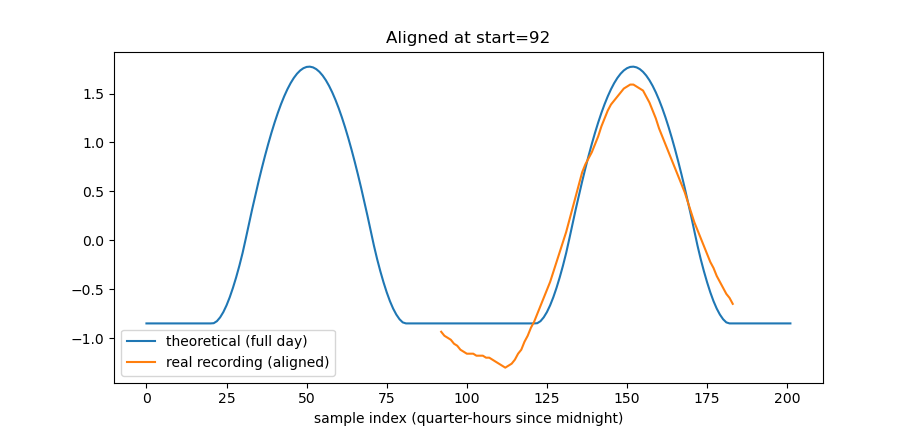

overlay the real world data as shifted by the resulted beggening time:

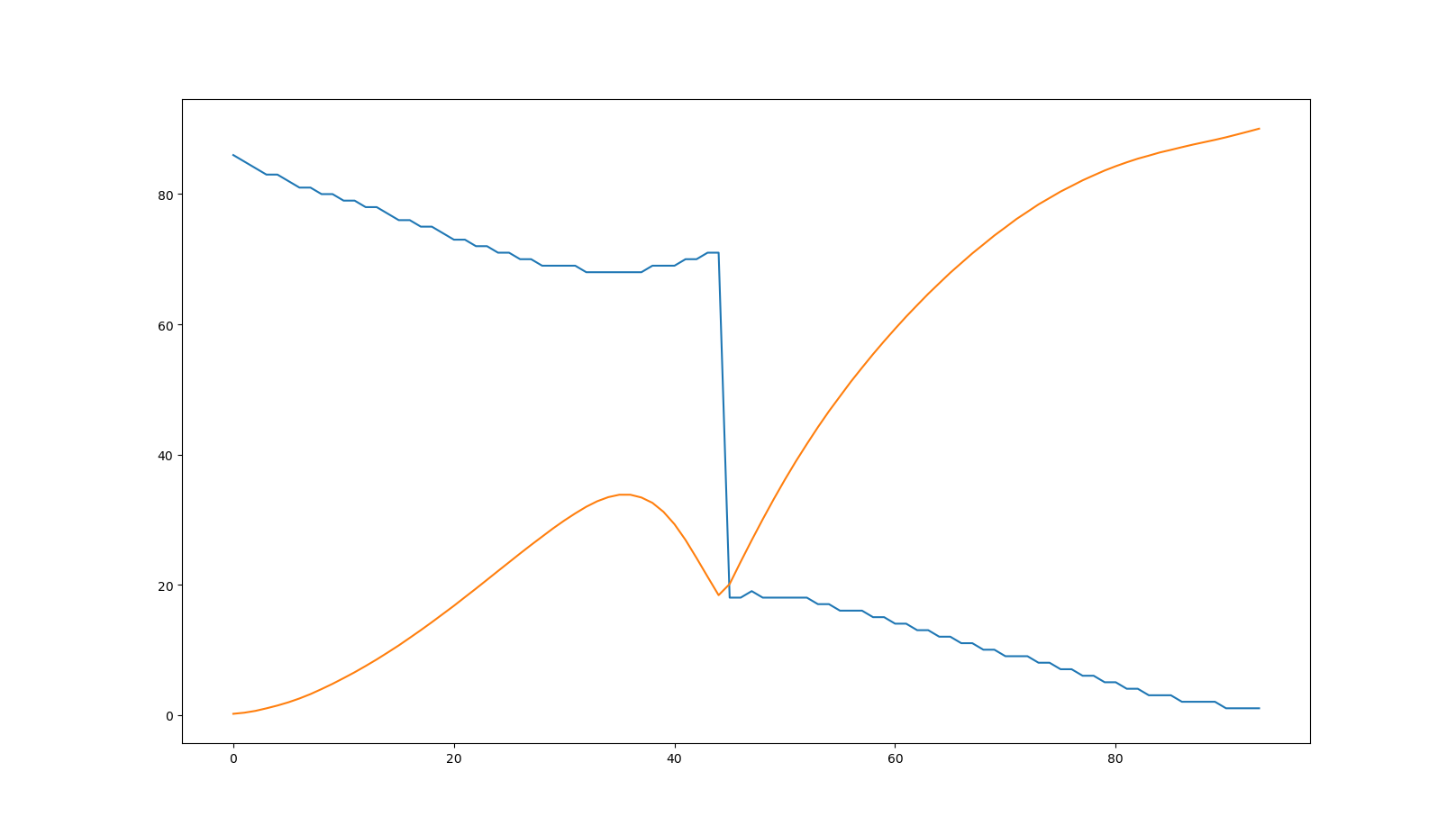

error in blue (how much 15 min samples) and confedance (in percente) (just the result of the correlation function)
